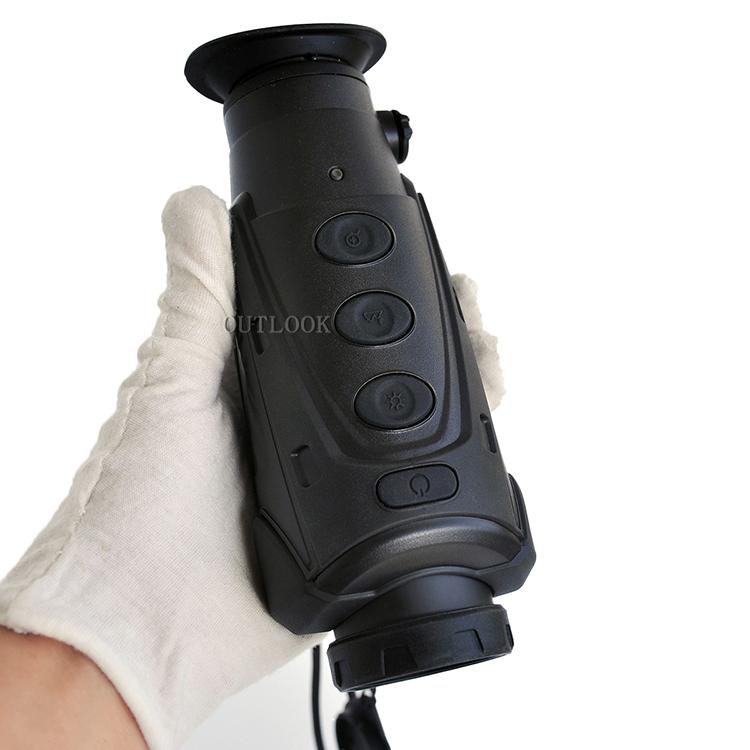

SNS-V Handheld Uncooled Infrared Camera features of newest generation uncooled FPA detector, advanced signal processing technology, modularized design technology, excellent image quality, small volume, light weight, high reliability and
easy to use it. It can be applied to stakeout, rescue, and the dark cavern, tunnel, underground parking and is widely applied
to public security, forest fire prevention, equipment monitoring in oil field, industrial inspection. It can also be used to observe,
trace and scout in all weathers.
SNSV Handheld Uncooled Infrared Camera has added a new function that is to acquire and memorize image. It can capture
and store the images in real time and output dates with USB, which is convenient for user to analyze and process information later.
Main specification
|
Spectral response:
|
8~14µm
|
|
Detector:
|
320x240 (multicrystal silicon)
|
|
NETD:
|
<100mk at 30˚C
|
|
Field of view:
|
16˚x12˚ 50mm lens
|
|
Power supply:
|
7V-12V DC
|
|
Power consumption:
|
<4W
|
|
Weight:
|
1.1kg (without lithium battery)
|
|
Operating temperature:
|
-20˚C-+50˚C
|
|
Size:
|
210mm x150mm x 115mm (L x W x H)
|
|
Eye piece:
|
0.6 inch OLED (640 x 480)
|
|
Video output:
|
CCIR
|
|
Interface:
|
USB2.0
|
