Product Description

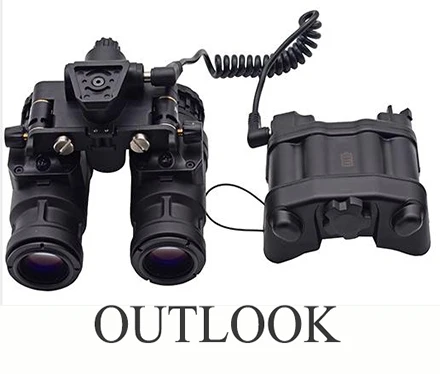

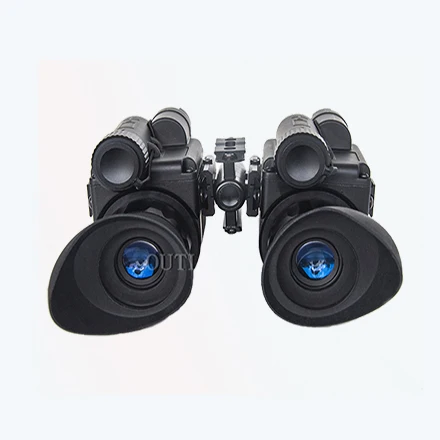

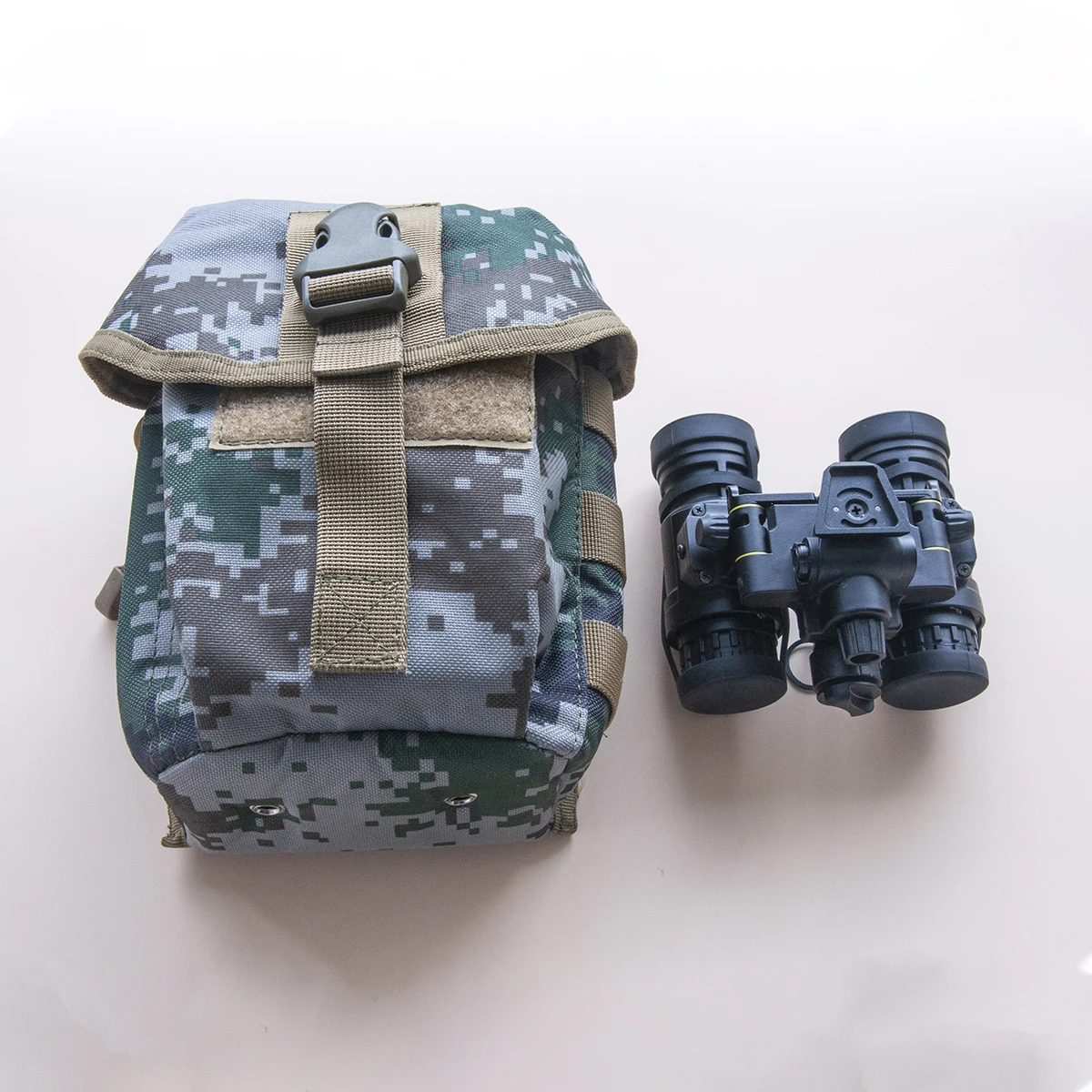

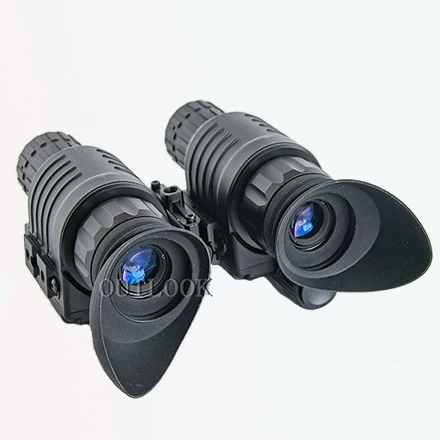

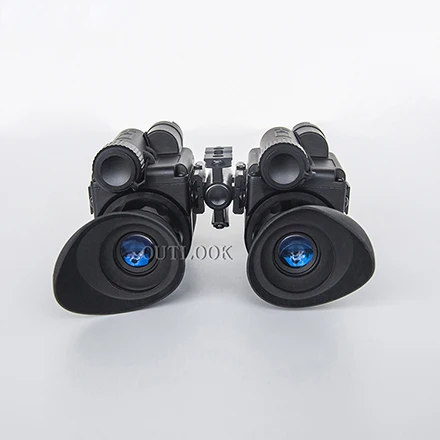

PVS-31 Head mounted night vision Monocular/binocular

        YJSPK2-3 is a high-performance military head mounted night vision binocular built by Detyl Optoelectronics with reference to pvs-31, an active head mounted night vision binocular in the United States. YJSPK2-3 has the characteristics of super large field of view, high definition, no distortion, light weight, high strength (the overall performance is much better than the original version of the U.S. military products), which is the ideal choice for military night equipment.

Product Description

Specification

Item

Value

Warranty

a year

Certification

ISO

Customized support

OEM

Place of Origin

China

Brand Name

OUTLOOK

Model Number

PSV-31

Size

115x178x58

Weight

560g

Type

Monocular

Magnification

1X

Operating Voltage

2.6-4.2V

Structural mode

Arbitrary turn it over

Rollover detection

Automatically detect and power off when turning up

Battery type

Lithium battery (cr123x1) / cr23x4 external battery box

Installation method

Head mounted(standard American helmet interface)

Control mode

ON/IR/AUTO

Over power consumption

<0.1W

Battery capacity

800-3200maH

Battery life

40-100H

FOV( °)

50 +/-2

Parallelism of optical axis

<0.1 °

IIT

Gen2

Resolution

51-57

Lens system

F1.18 22.5mm

MTF

120LP/mm

Optical distortion

3% Max

Relative Illumination

>75%

Coating

Multilayer broadband coating

Range of focus

250mm-∞

Focus mode

manual focus facility

Distance of pupil

30

Eyepiece aperture

8mm

Range of visibility

0 (+ / - 5 optional)

Eye spacing adjustment

Arbitrary continuous adjustable

Eye distance adjustment range

50-80mm

Eye distance locking method

Manual locking

IR

850nm 20mW

Operating temperature

-40--+55℃

Relative humidity

5%-95%

Environment rating

IP65/IP67

Packing & Delivery

Box, Carton Strong carton packaging Suitable for long distance travel. Good resistance to moisture and shocks. Land /ocean/ air shipping

Customized to your needs.

OUTLOOK Services

Fast sample arrangement

OK

Sample Charges return

OK

OEM and Logo

OK

On time Delivery

OK

Reflex able payment

OK

24h consulting and after-sale service

OK

Packages tracking & arrival reminding

OK

The quality-related compensation

OK

Specifications︰PVS-31
Advantages︰-Detyl Optoelectronics with reference to pvs-31
-An active head mounted night vision binocular in the United States
-Super large field of view
-High definition
Min Order︰1
Ship Date︰15
Product Image
