Model No.︰YJQR-54sd
Brand Name︰OUTLOOK
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 34 Related Items
Prev56789Next

Product Description

OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd

Product Description

     This product adopts an uncooled focal plane detector, servo control, and real-time digital image processing circuit independently developed and produced by our company. It can work continuously during the day and night and penetrate fog, smoke, dust, and other particles. It can simultaneously complete search, reconnaissance, and aiming and shooting actions. It is an ideal assistant for anti-terrorism, law enforcement, anti-smuggling, and anti- .

Features of FPGA

  • Image processing technology 384X288/640X480 (optional) high resolution 60Hz real-time imaging, fast movement without smear.
  • No block design, unique digital enhancement algorithm
  • Professional telephoto germanium lens, 2x, 4x digital zoom
  • White-hot/black hot/brown/iron red/rainbow, many colors are available.
  • Standardized interface, with crosshair, automatic adjustment of reticle color, deficient power consumption, can work continuously for a long time
  • Convenient and easy-to-operate buttons and digital menu
  • 100-level brightness control, 100-level contrast control
  • Manual and fully automatic image enhancement mode can find the target in extremely harsh environments.
  • 1024X768 high-resolution OLED eyepiece system
  • High system reliability, strong anti-fall, and anti-seismic ability
  • Strict and reliable waterproof performance, suitable for all-weather indoor and outdoor use

Example of gain mode: foreground auto/background auto/linear, select the gain mode according to the usage environment.

Examples of pseudo-color patterns: Digital zoom: The specially designed dense cross line zooms in with the center of the cross, which significantly improves the aiming performance.

Ranging function

Select to enable the ranging function in the menu, and the real-time measured distance will be displayed at the top of the screen.

For example, the product can be used at 340 meters, and if the measurement range is exceeded, the distance is invalid, or the data is wrong.

Note: Generally, the higher the target reflectivity, the better the ranging ability, and the faster the ranging response speed.

     For example, the target with medium reflectivity can measure 800 meters, the target with high reflectivity is no less than 1200 meters, and the one with low reflectivity. The target may only measure up to 600 meters (for targets that are difficult to form diffuse reflection, such as water surfaces, it may not be able to measure). Too high humidity in the environment will also cause the scattering of the laser, which will reduce the measurement accuracy and shorten the measurement distance. Because the distance between the ranging window and the thermal imaging lens is about 5cm, the deviation of the measured target point from the center of the screen will vary due to different distances.



Technical parameter

  • Detector type VOX uncooled focal plane
  • Pixel 384*288,17um
  • Sensitivity ≤40mk f/1, 300K, 60Hz
  • Spectral range 8~14μm
  • Lens selection Germanium Lenses, coated with hard carbon and
  • anti-reflective coating
  • Focal length 54mm
  • Field of view 10°(H) x 7°(V)
  • Spatial resolution 0.33mrad
  • F# 1.0
  • Focus range 10 meters-infinity
  • Eyepiece Full glass diopter eyepiece
  • Focus Manual
  • Laser Ranging In vivo
  • Ranging distance 8-1200M
  • Camera and video function Can take photos and videos
  • Video output RS170 CCIR/ PAL composite video (60HZ)
  • Show 0.55"OLED /1024x768 pixels
  • Image polarity White hot, black hot, brown, red hot, iron red,
  • rainbow
  • Electronic zoom 1X-2X-4X
  • Crosshair Built-in movable crosshair to aim at the target.
  • Battery Type 3.7V rechargeable lithium battery, 3200mAhx1
  • Power consumption 1.2W

Environment

  • Operating temperature -10℃~ +45℃
  • Storage temperature -30℃~ +60℃
  • Shockproof Anti-vibration drop 1 meter

Physical parameter

  • Shell material Aviation aluminum alloy
  • Weight 750g (without lens)
  • Dimensions 200mm (L)x Φ55 mm









Precautions

1. Do not direct the thermal imager detector to a high-radiation source, such as the sun, carbon dioxide laser, electric welding machine.

2. Do not touch the infrared lens and the ranging window with your fingers or other objects.

3. Do not use chemical solvents or thinners to wipe the infrared lens and the ranging window. Instead, you can wipe them with a clean, soft, dry flannel.

4. Do not install the wrong battery positive and negative poles, and install the positive poles of the battery inwards.

5. The battery compartment cover needs to be screwed tightly to fit the waterproof rubber ring tightly. Otherwise, the shock resistance will be affected.

Customer Service

After receiving the product from the date of purchase, the company provides lifetime maintenance services for the products, which 12 months free maintenance services for thermal energy detectors and display eyepieces, except for human factors and natural disasters.

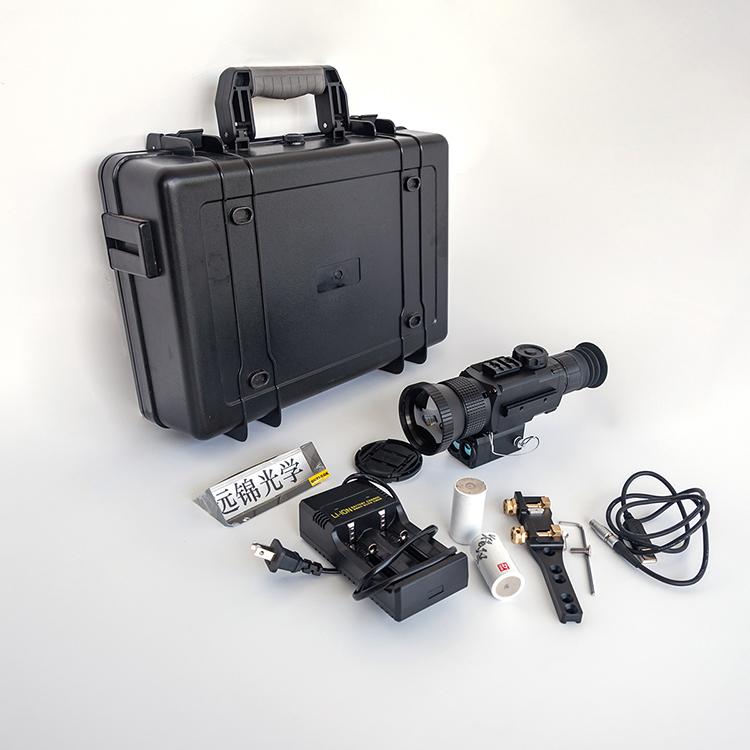

Packing list main unit 1 54mm lens 1 (installed) 62mm lens cover 1 charger 1 20mm clamp 1 (installed) 2 3200mah lithium batteries (1 in the machine, 1 spare) 1 manual

Specifications︰YJQR-54sd
Advantages︰Image processing technology 384X288/640X480 (optional) high resolution 60Hz real-time imaging, fast movement without smear.
No block design, unique digital enhancement algorithm
Professional telephoto germanium lens, 2x, 4x digital zoom
White-hot/black hot/brown/iron red/rainbow, many colors are available.
Standardized interface, with crosshair, automatic adjustment of reticle color, deficient power consumption, can work continuously for a long time
Convenient and easy-to-operate buttons and digital menu
100-level brightness control, 100-level contrast control
Manual and fully automatic image enhancement mode can find the target in extremely harsh environments.
1024X768 high-resolution OLED eyepiece system
High system reliability, strong anti-fall, and anti-seismic ability
Strict and reliable waterproof performance, suitable for all-weather indoor and outdoor use
Product Image

OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd
OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd

OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd
OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd

OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd
OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd

OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd
OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd

OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd
OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd

OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd
OUTLOOK Professional Thermal Imaging and Night Vision Optics YJQR-54sd
