Super Gen. Ⅱ Low light night vision weapon sights

 telescope
  •  telescope
  • night vision
  • Super Gen. Ⅱ Low light night vision weapon sights
  • night vision gen2
  • single eye night
  • scope
Model No.︰YJQ4Y & YJQ6Y
Brand Name︰OUTLOOK
Country of Origin︰China
Unit Price︰US $ 2470 / pc
Minimum Order︰1 pc
Share on:

 Total 63 Related Items
Prev1112131415Next

Product Description

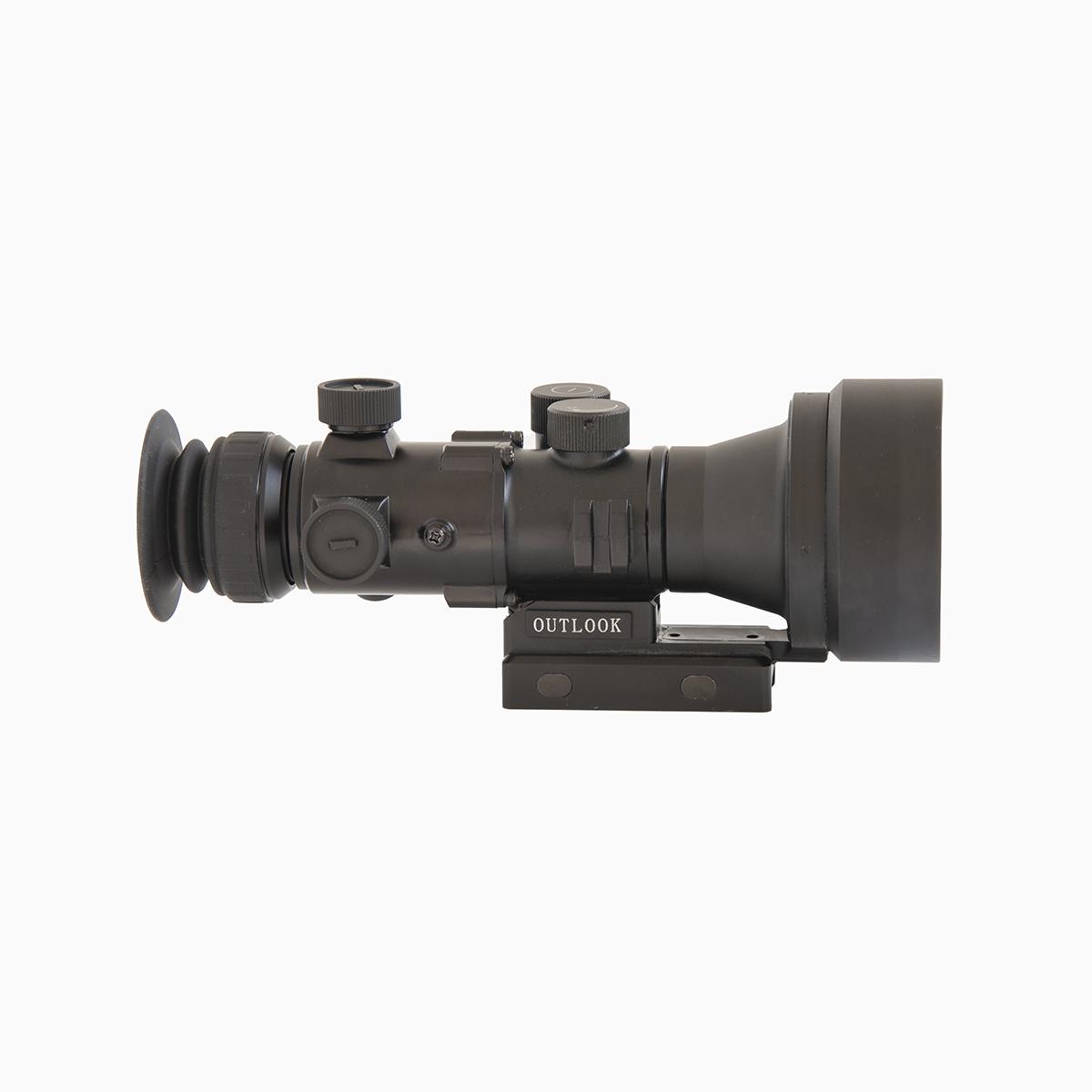

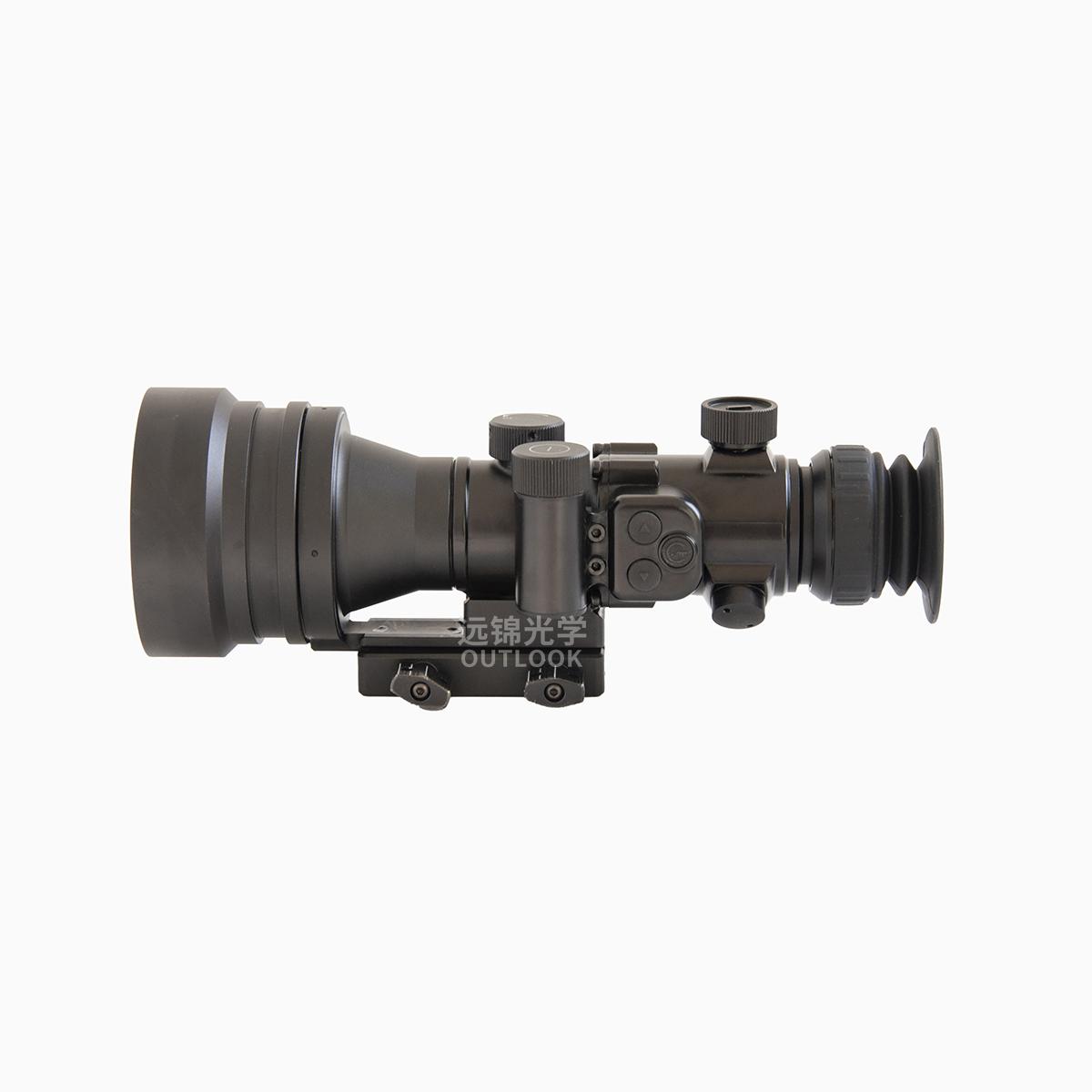

Super Gen. Ⅱ Low light night vision sights

Product description:

The YJQ4Y & YJQ6Y night vision devices use the powerful Super Gen.2 image intensifier tubes, which improve observation quality and extend the user's field of view up to 450-700 m. As long as, the brightness is as high as 0.001 lux, user can conduct field sniper operations at night. In addition, this riflescope has an anti-glare function that means it can be switched off automatically when suddenly aiming at bright light and is suitable for urban combat. It is also equipped with infrared brightness compensation equipment that enables military combat in various conditions. In addition, it complies with the internationally accepted standard.

Application: YJQ4Y & YJQ6Y suitable for

+ Police / Law enforcement

+ Night surveillance / Hunting

+ Patrol / Rescue / Search

Features

+ Image intensifier tube Gen II (The resolution is between

57-64, the signal-to-noise ratio is above 20, the optical

sensitivity is above 650, and the quality factor (FOM) is

between 1200 and 1600)

+ Shockproof even with heavy recoil (include 375 H&H cal.)

+ Special high light transmission optics

+ Long eye relief

+ Precision tactical windage/elevation adjustment (1/4 MOA)

+ Wide range of mounts

+ Water resistance/ waterproof

+ Extremely lightweight

+ Can be installed on G2, G3, Chinese type 03, Type 85-7.62mm,

Type 88-5.8 mm. sniper rifle and AK-47etc

+ Reached up to US Military standard >1250



Parameters

Item

Parameter Items

Measured parameters

1.

Model no.

YJQ6Y

YJQ4Y

2.

Magnification, x

5.7x

4.4x

3.

Field of view: FOV

6.4 °

8.3 °

4.

Diopter adjustment range

-4.5SD ~+4.5SD

-5SD ~+5SD

5

Parallax

1’

1.5’

6

Reticle adjustment rang

x: ±13mil

y: ±14mil

x: ±18mil

y: ±20mil

7.

Exit pupil diameter

Ø 7mm

Ø 7mm

8.

Eye point distance

30 mm

30 mm

9.

Focus range

15m—∞

15m—∞

10.

Shock zero movement

0.3mil

0.1mil

11.

Total weight, g

1071 g.

953 g.

12.

Dimensions

219x83x92 mm (no cover)

202x82x90 mm (no cover)

13.

Resolution (image tube)

57 lp/mm

57 lp/mm

14.

Signal to noise radio (image tube)

26.5 db.

25 db.

Specifications︰YJQ4Y & YJQ6Y
Advantages︰Product description:
The YJQ4Y & YJQ6Y night vision devices use the powerful Super Gen.2 image intensifier tubes, which improve observation quality and extend the user's field of view up to 450-700 m. As long as, the brightness is as high as 0.001 lux, user can conduct field sniper operations at night. In addition, this riflescope has an anti-glare function that means it can be switched off automatically when suddenly aiming at bright light and is suitable for urban combat. It is also equipped with infrared brightness compensation equipment that enables military combat in various conditions. In addition, it complies with the internationally accepted standard.
Application: YJQ4Y & YJQ6Y suitable for
+ Police / Law enforcement
+ Night surveillance / Hunting
+ Patrol / Rescue / Search
Features
+ Image intensifier tube Gen II (The resolution is between
57-64, the signal-to-noise ratio is above 20, the optical
sensitivity is above 650, and the quality factor (FOM) is
between 1200 and 1600)
+ Shockproof even with heavy recoil (include 375 H&H cal.)
+ Special high light transmission optics
+ Long eye relief
+ Precision tactical windage/elevation adjustment (1/4 MOA)
+ Wide range of mounts
+ Water resistance/ waterproof
+ Extremely lightweight
+ Can be installed on G2, G3, Chinese type 03, Type 85-7.62mm,
Type 88-5.8 mm. sniper rifle and AK-47etc
+ Reached up to US Military standard >1250
Payment Details︰T/T
Min Order︰1
Ship Date︰10
Product Image

 telescope
telescope

night vision
night vision


night vision gen2
night vision gen2

single eye night
single eye night

scope
scope
