Model No.︰PVS-7
Brand Name︰OUTLOOK
Country of Origin︰China
Minimum Order︰1 pc
Share on:

 Total 63 Related Items
Prev910111213Next

Product Description

 Infrared Night Vision Device Infrared Night Vision Monocular

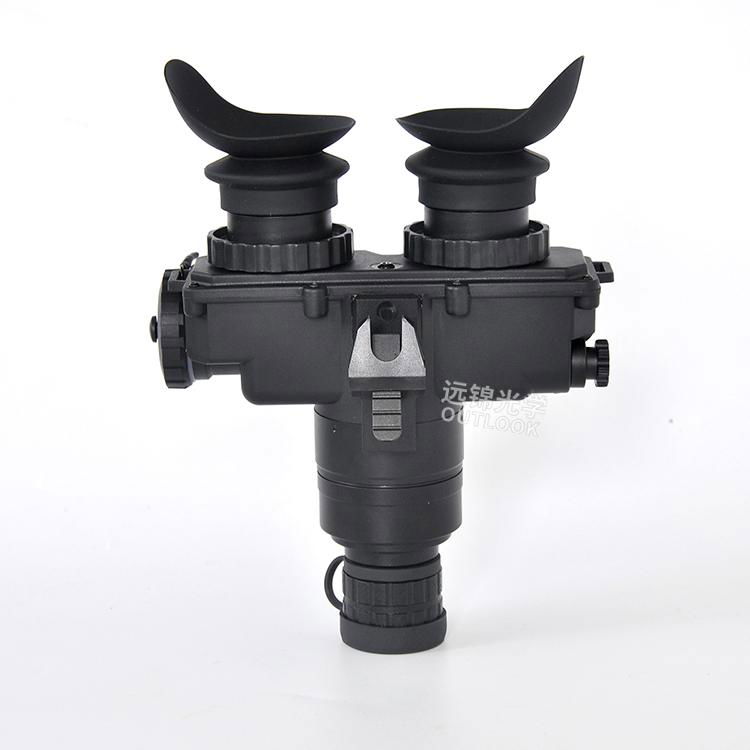

Yuanjin brand YJ-PVS7 is a compact and lightweight binocular night vision device, flexible use, can be connected to the head, helmet use, can also be used by hand. The magnification is 1 times, which provides users with a wide observation angle and space, and can judge the actual distance of the target faster. The product has a wide range of applications and can be used for night field observation, night fishing, forest fire prevention, home security, night walking and driving, etc. It is an ideal device for outdoor night vision.



Outstanding advantages

The super second-generation YJ-2 high-performance super second-generation low-light image intensifier is adopted, and the picture is clear. Yuanjin YJ-2 super second-generation low-light tube, the resolution is between 48-64, the signal-to-noise ratio is above 20, the optical sensitivity is above 650, and the quality factor (FOM) is between 1000 and 1600. It can use P45 black and white tube and P22 green tube.



YJ-PVS7 Technical parameters

        Item

Index

Specification

Model

YJ-2 Super Generation Low Light Image Intensifier

Magnification, x

1

Field of view, deg

40°

Len system

26.8mm/1.2

Adjusted interpupillary distance, mm

Yes

Focus range, m/in

0.25/10"to infinity

Eye relief distance, mm

15

Power supply

Two 1.5VAA batteries. Rated voltage 3.7V, maximum 4.2V, minimum 3V

Diopter setting, D

+4, -4

Dimension, mm

160x150x75

Weight(with 2 batteries), g

550

Estimated battery life w/out IR, 73 °F, hour

Up to 80

GEN 2+ Image Intensifier Tubes

Photocathode type

18mm S-25

Photocathode sensitivity, typical, uA/lm

550

Resolution, typical, Ip/mm

57-64

Luminous gain, typical, fl/fcd

16000-25000

Signal-to-noise ratio, typical

at least 20

FOM, typical

1000-1600

Tube reliability standard, hour

10000

Keeep time, typical, year

10

Effective Distance

Detection range, m

220-280

Recognition range, m

175-230

Environmental

Data

Operating temperature

-40 to +50

Storage temperature

-30 to +50

Immersion, hour

2 meter for 1.0(optional)

Humidity, %

up to 98%





Technical parameters of Yuanjin YJ-2 super second-generation low-light image intensifier

GENERAL DATA



Minimun

Maxmun

Unit

Useful input diameter

17.5







Cathode sensitivity

at 2850K

650μA/lm

899μA/lm

750μA/lm

at 800nm

50mA/W





At 850nm

40mA/W





Luminanac Gain

8000cd/㎡/1x-12000cd/㎡/1x

Max.Output Bringhtness

4cd/㎡-8cd/㎡

Equiv.Background Iumination

≤0.251x

Resolution

Center

51  lp/mm

64  lp/mm

60 lp/mm

Preipheral

51  lp/mm

64  lp/mm

60 lp/mm

M.T.F

At2.51p/mm

86





At7.51p/mm

65





At151p/mm

42





At251p/mm

22





At301p/mm

15





Signal  To  Noies  Ratio

20

27

22

Uniformity  Lin

≤25mA







Φ5.6mm

Φ5.6mm_Φ14.7mm

Φ14.7mm_Φ17.8mm



>300μm

0

0

1



230μm-300μm

0

1

1



150μm-230μm

0

2

2



75μm-150μm

1

3

3



Specifications︰PVS-7 Super Generation Low Light Image Intensifier
Advantages︰Lightweight and flexible use
Wide observation angle and space
Second-generation low-light image intensifier
Export Markets︰North America, Europe, Australia, South Africa, Southeast Asia, Middle East
Min Order︰5
